Industrial-Grade Floors.
Showroom-Grade Finish.
India's only epoxy flooring system with elastomeric crack-bridging technology. From factory floors to showroom spaces — engineered to last decades, not years.
Your Concrete Floor is Costing You Money
Every day you delay, your unprotected floor silently drains your profits through maintenance, contamination, and downtime.

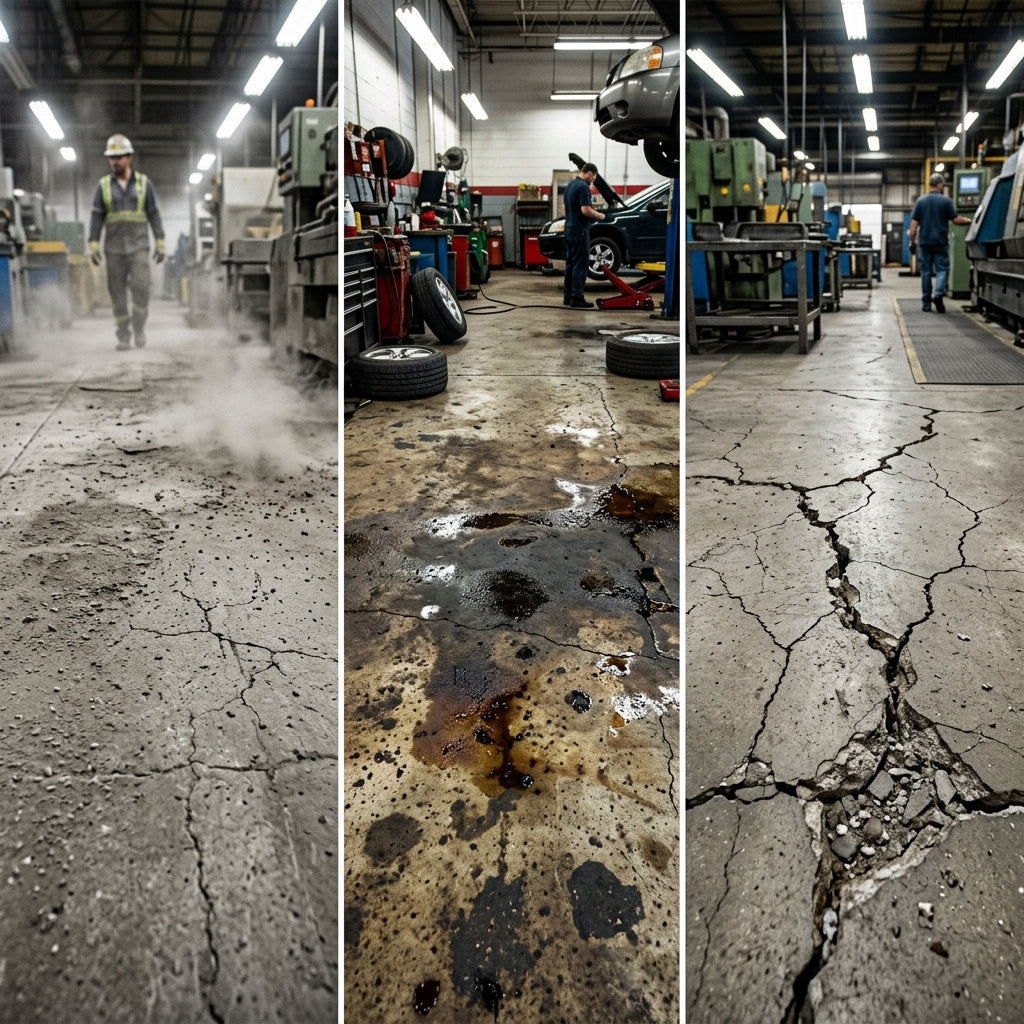

🔍 Concrete Dusting
Every day, your concrete sheds microscopic dust that contaminates products, damages sensitive machinery bearings, and causes respiratory health issues for workers. It's invisible — but the damage is real.
⚠️ Cracks & Structural Damage
Thermal cycling between Indian summers (45°C+) and AC environments creates expansion cracks that grow wider every season. Patching is temporary — the cracks always return.
🧪 Chemical & Oil Attack
Oil spills, hydraulic fluid leaks, acid splashes, and even daily cleaning agents eat into unprotected concrete — creating permanent stains and structural weakening that can't be reversed.
⚠ Indian facilities lose ?2–5 lakh per year per 1,000 sq.ft. in maintenance, cleaning, product contamination, and downtime from damaged floors.
One System. Extraordinary Performance.
MAGNIFICO HPIEF — India's most advanced high-performance industrial epoxy flooring system with patented elastomeric crack-bridging technology.
Elastomeric vs Conventional — There's No Contest
Most epoxy systems use rigid screed that cracks under stress. MAGNIFICO uses an elastomeric screed that flexes, absorbs impact, and bridges cracks — then tops it with a diamond-hard finish coat.
| Feature | MAGNIFICO HPIEF | Conventional |
|---|---|---|
| Screed Type | ✅ Elastomeric (Flexible) | ❌ Rigid (Brittle) |
| Crack-Bridging | ✅ Class A3 (≥1.25mm) | ❌ None |
| Impact Resistance | ✅ >160 in-lbs | ❌ Fractures |
| Elongation | ✔ 8–12% | ❌ <1% |
| Vibration Damping | ✅ Absorbs | ❌ Transmits |
| Compressive Strength | ✅ >83 MPa (combined) | ✘ 40–55 MPa |
| System Lifespan | ✅ 10+ years | ✘ 2–4 years |
| Surface Hardness | ✅ 87 Shore D | ✘ 70–75 Shore D |

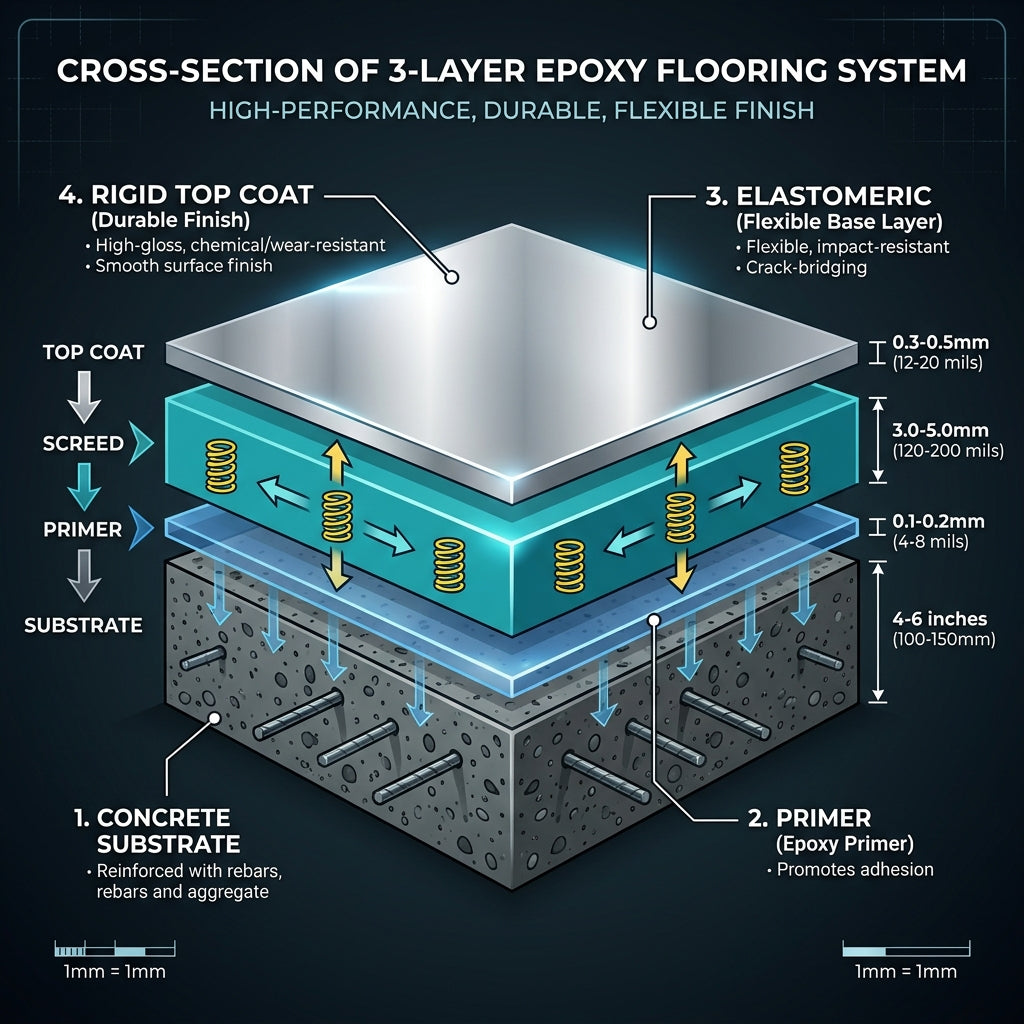

3-Layer System: Primer → Elastomeric Screed → Rigid Top Coat
Engineered from the Ground Up
Every MAGNIFICO floor follows a precise 10-step scientific process. No shortcuts. No compromises.
Surface Preparation
Concrete must be 28+ days cured. Shot-blasting or diamond grinding to CSP 2–3 profile. All oil, grease, and loose material removed. Pull-off strength verified at =1.5 MPa.
Critical Foundation StepPrimer Application
Two-component epoxy primer mixed at 2:1 ratio. Applied with medium-nap roller at 5–8 m²/kg coverage. Penetrates 2–4mm into concrete for unbreakable bond. 8–10 hours drying.
100% Solids · Solvent-FreeScreed Mixing
Resin and hardener pre-mixed at 1:1, then graded quartz/silica sand added (6 parts) for 1:1:6 ratio. Mixed to thick, trowelable mortar consistency.
Pot Life: 30 min at 25°CElastomeric Screed Application
Applied at 1–5mm thickness with notched trowel. Spiked roller releases entrapped air. This is the magic layer — it cures to an ELASTOMERIC state, not rigid.
⭐ Key DifferentiatorScreed Curing (12+ hours)
The screed cures to an elastomeric state — providing flexibility, impact absorption, crack-bridging, and vibration damping. This is what conventional systems cannot do.
Elongation: 8–12% · Shore A: 88–92Sanding & Dust Removal
Cured screed surface sanded with 60–80 grit sandpaper to create mechanical key. ALL dust removed with vacuum and tack cloth — zero contamination tolerance.
Re-Priming (Critical Step)
Thin coat of primer (2:1) over sanded screed. This ensures perfect adhesion between the flexible elastomeric screed and the rigid top coat. 8–10 hours drying.
Bridges Flexible → Rigid LayersTop Coat Mixing
Resin + hardener at 2:1, then filler (2.4 parts) and pigment paste for desired colour. Total ratio 2:1:2.4. Mixed thoroughly for 3 minutes.
Any RAL Colour AvailableTop Coat Application

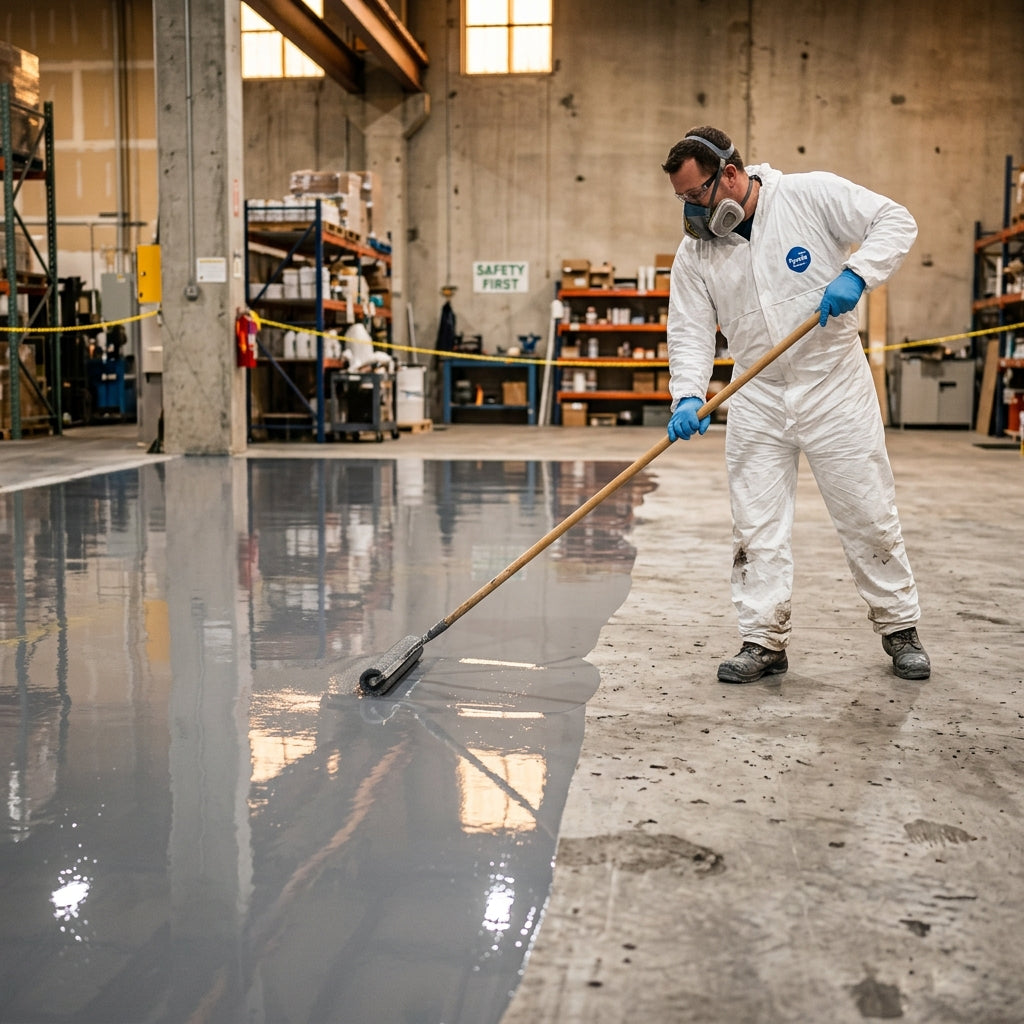

Applied at 1mm with notched squeegee. Back-rolled with short-nap roller for uniform mirror finish. 92 GU gloss — the floor literally reflects like glass.
87 Shore D Hardness · 92 GU GlossCuring & Handover
Foot traffic allowed after 3 days. Full mechanical and chemical cure at 7 days. Heavy vehicular traffic after 7+ days. Your floor is now ready for decades of service.
Full Cure: 7 DaysOne System. Every Industry.

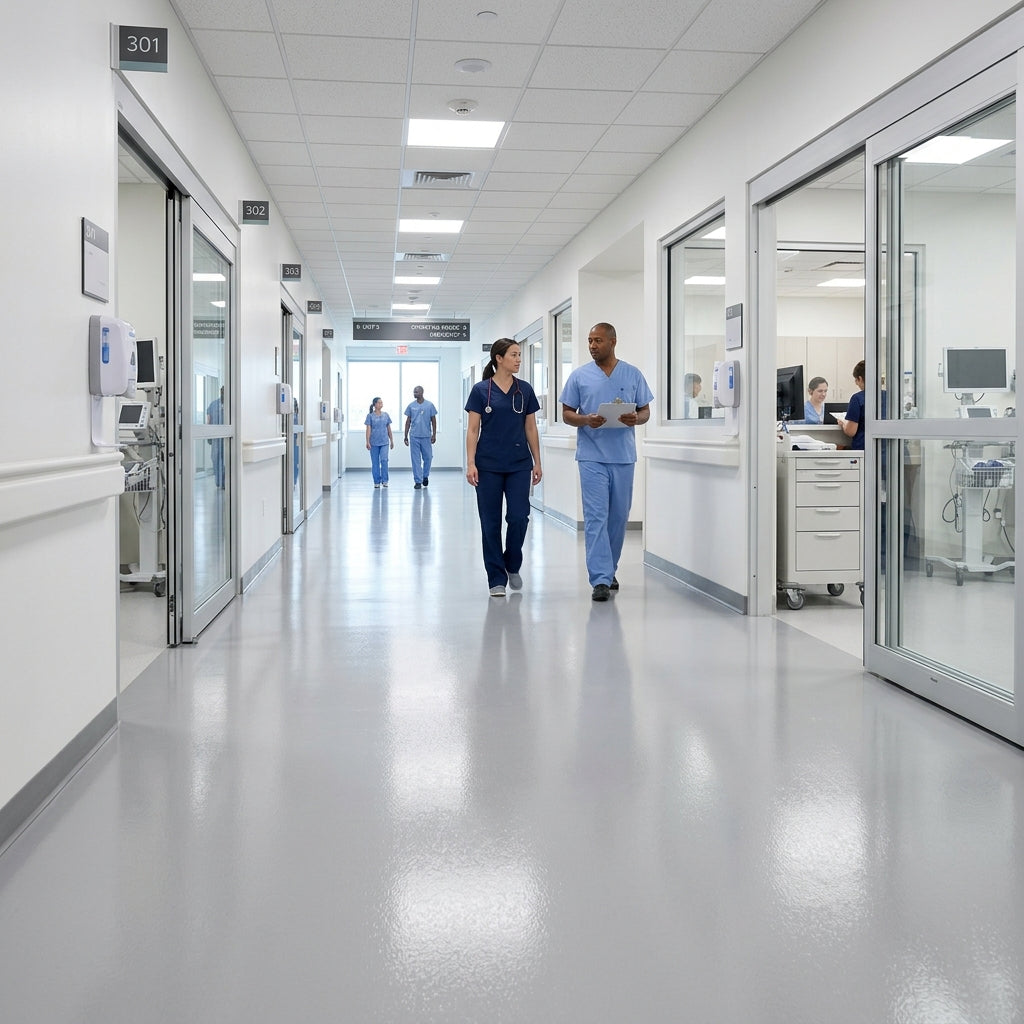

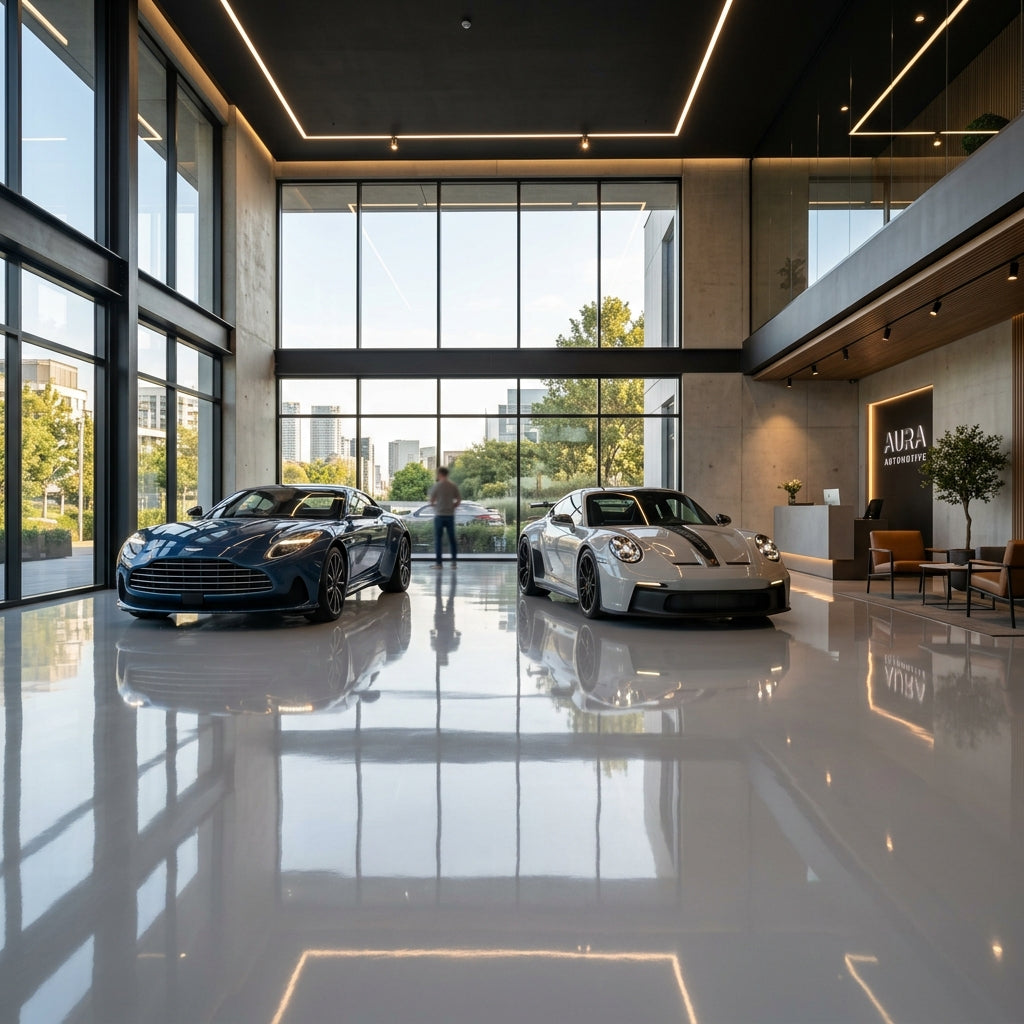

From heavy manufacturing to sterile pharma facilities — MAGNIFICO HPIEF handles every environment.
Numbers Don't Lie. Neither Do We.
Every claim backed by ASTM/IS test methods. All data from laboratory testing under controlled conditions.
| Property | Test Method | Value |
|---|---|---|
| Type | — | Two-component penetrating primer |
| Mix Ratio (R:H) | — | 2 : 1 by weight |
| Viscosity | ASTM D2196 | 200–400 mPa·s |
| Solids Content | — | 100% (solvent-free) |
| Drying Time @ 25°C | — | 8–10 hours |
| Coverage | — | 5–8 m²/kg |
| Penetration Depth | — | 2–4 mm into concrete |
| Pot Life @ 25°C | — | 30 minutes |
| Property | Test Method | Value |
|---|---|---|
| Compressive Strength | ASTM D695 / IS 15477 | >83 MPa (system combined) |
| Flexural Strength | ASTM D790 | 28 MPa |
| Tensile Strength | ASTM D638 | 15 MPa |
| Bond Strength | ASTM D4541 | >2.0 MPa (concrete failure) |
| Elongation at Break | ASTM D638 | 8–12% (elastomeric) |
| Impact Resistance | ASTM D2794 | >160 in-lbs |
| Shore A Hardness | ASTM D2240 | 88–92 |
| Crack-Bridging | EN 1062-7 | Class A3 (±1.25mm at -10°C) |
| Coverage | — | 18 kg kit → 10 m² @ 1mm |
| Property | Test Method | Value |
|---|---|---|
| Compressive Strength | ASTM D695 / IS 15477 | 76 MPa |
| Flexural Strength | ASTM D790 | 32 MPa |
| Tensile Strength | ASTM D638 | 18 MPa |
| Bond Strength | ASTM D4541 | >2.5 MPa (concrete failure) |
| Shore D Hardness | ASTM D2240 | 87 |
| Gloss @ 60° | ASTM D523 | 92 GU (mirror finish) |
| Abrasion Resistance | ASTM D4060 | 62 mg loss |
| Water Absorption | ASTM D570 | <0.15% |
| Coverage | — | 14.5 kg kit → 10 m² @ 1mm |
| Chemical | Rating | Notes |
|---|---|---|
| Mineral Oils & Greases | Excellent ✅ | No degradation |
| Diesel & Petroleum | Excellent ✅ | <1% weight gain |
| Hydraulic Fluids | Excellent ✅ | No degradation |
| 10% NaOH (Alkalis) | Excellent ✅ | ~0.4% weight gain |
| Distilled Water (40°C) | Excellent ✅ | ~2.5% weight gain |
| 30% H2SO4 | Fair ⚠️ | ~10% weight gain |
| 5% Acetic Acid | Fair ⚠️ | ~5% weight gain |
| Ketones / Chlorinated | Not Recommended ❌ | Significant swelling |
From Survey to Handover. We Handle Everything.
Free Site Survey
We visit & assess
Custom Proposal
Detailed scope & quote
Surface Prep
Shot-blasting, grinding
3-Layer Install
Primer → Screed → Top
Quality Check
Thickness, adhesion tests
Handover
Warranty documentation
When Can You Use Your Floor?
The #1 question every client asks. Here's the honest answer.
💡 Most facilities resume light operations in just 3 days. Full heavy load capacity at 7 days.
Your Floor. Your Identity.
Available in every RAL colour. Custom shade matching for bulk orders. Pigment packs in 500g packaging.
Built to Last. Backed by Promise.
1-Year Warranty
Against peeling, delamination & manufacturing defects
ISO 9001:2015
Certified quality management systems
Batch Tested
COA (Certificate of Analysis) on request
Made in India
Manufactured in Changodar, Gujarat
Zero VOC
100% solids, solvent-free, safe for workers
Ready to Transform Your Floor?
Free site survey. Custom quotation within 24 hours. No obligations.
Or call us directly: +91 93280 59588
