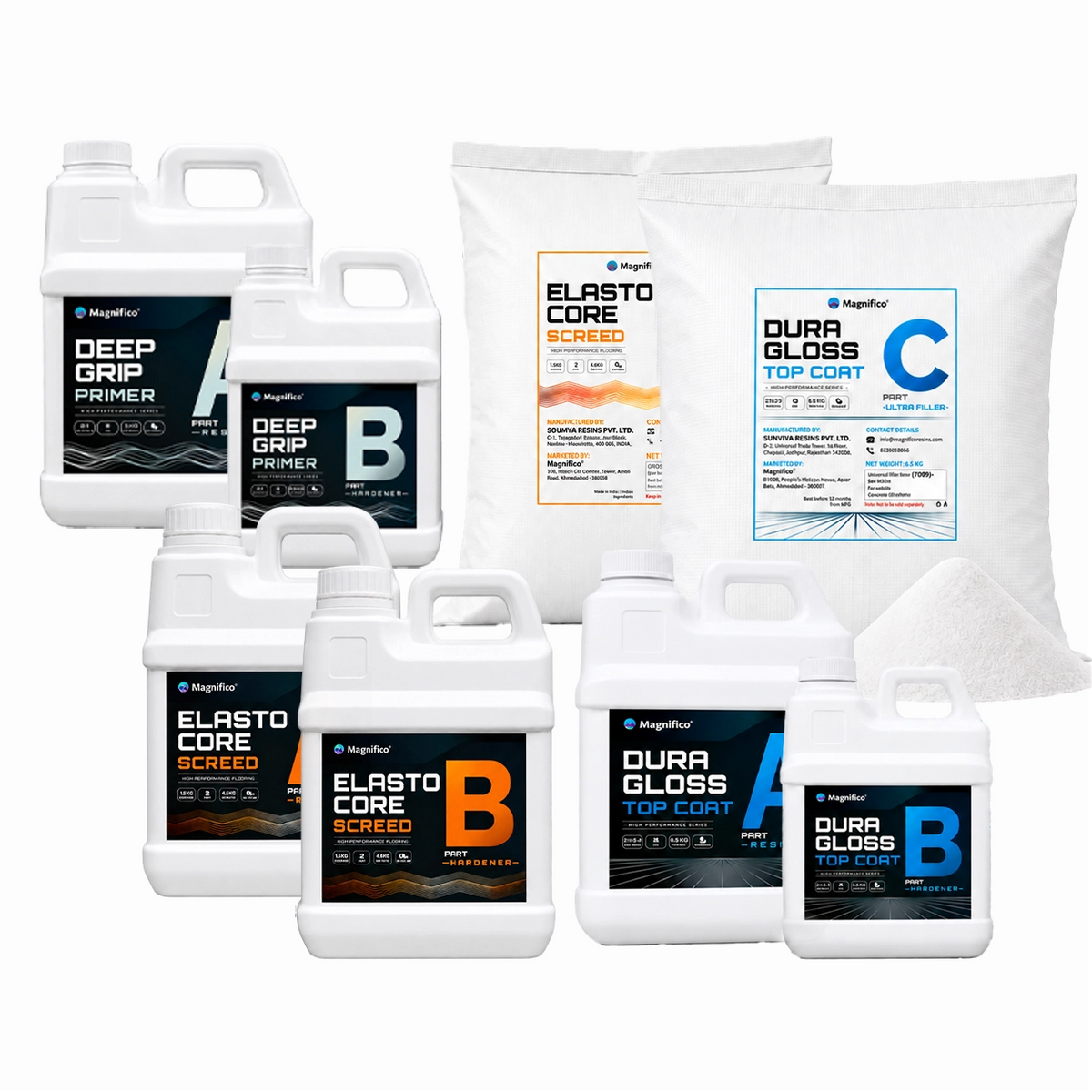

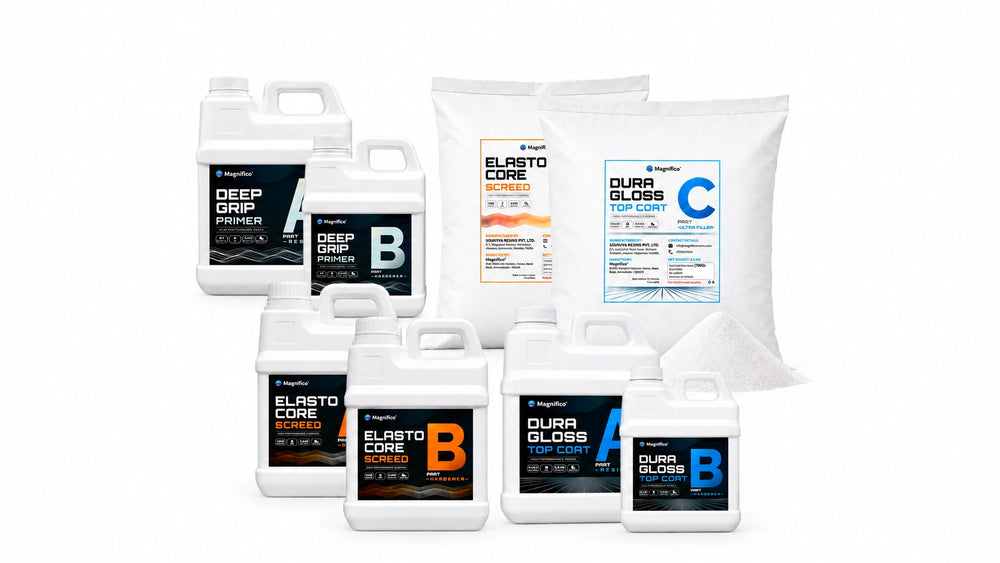

Magnifico 3-in-1 Industrial Epoxy Flooring System (Custom Kit)
Engineered 3-layer commercial floor leveling & high-gloss protective system for warehouses, factories & showrooms.
- Extreme Compressive Strength (> 70 N/mm²) for heavy forklift trafficking
- 100% Solids, 0% VOC — Solventless formulation safe for enclosed facilities
- Mirror-gloss, seamless protective finish resistant to oils, battery fluids & abrasions
- Engineered 3-layer system: Penetrating Primer + Load Screed Mortar + Self-Leveling Topcoat
SELECT TOTAL FLOOR THICKNESS
0:24
0:24
0:20
0:24
‘Turnkey application across our 25,000 sq.ft logistics facility. Having Primer, Screed Mortar, and Topcoat pre-measured in a 3-in-1 kit eliminated site formulation errors. Withstands continuous 5-ton forklift traffic with zero chipping!”
‘Passed all cGMP cleanroom regulatory inspections with zero remarks! Monolithic 92 GU mirror finish with zero pores or grout seams. Resists daily chemical disinfection washdowns effortlessly.”
‘Upgraded our automotive assembly shopfloor with the 3-layer system. The screed leveled 4mm concrete gouges in one pass, and the high-gloss enamel gives stunning light reflection. Cured rock-hard in 14 hours!”
‘The 3-layer monolithic bond is indestructible. Zero delamination even under vibrating CNC stamping machines and continuous pallet truck drag. Exceeded ASTM C579 with >83 MPa compressive strength.”
‘Turnkey application across our 25,000 sq.ft logistics facility. Having Primer, Screed Mortar, and Topcoat pre-measured in a 3-in-1 kit eliminated site formulation errors. Withstands continuous 5-ton forklift traffic with zero chipping!”
‘Passed all cGMP cleanroom regulatory inspections with zero remarks! Monolithic 92 GU mirror finish with zero pores or grout seams. Resists daily chemical disinfection washdowns effortlessly.”
‘Upgraded our automotive assembly shopfloor with the 3-layer system. The screed leveled 4mm concrete gouges in one pass, and the high-gloss enamel gives stunning light reflection. Cured rock-hard in 14 hours!”
‘The 3-layer monolithic bond is indestructible. Zero delamination even under vibrating CNC stamping machines and continuous pallet truck drag. Exceeded ASTM C579 with >83 MPa compressive strength.”
Is Magnifico 3-in-1 Industrial Epoxy Flooring System (Custom Kit) right for your project?
Every corner of India.
From Kashmir to Kanyakumari — Magnifico industrial floors power India’s leading factories & warehouses.

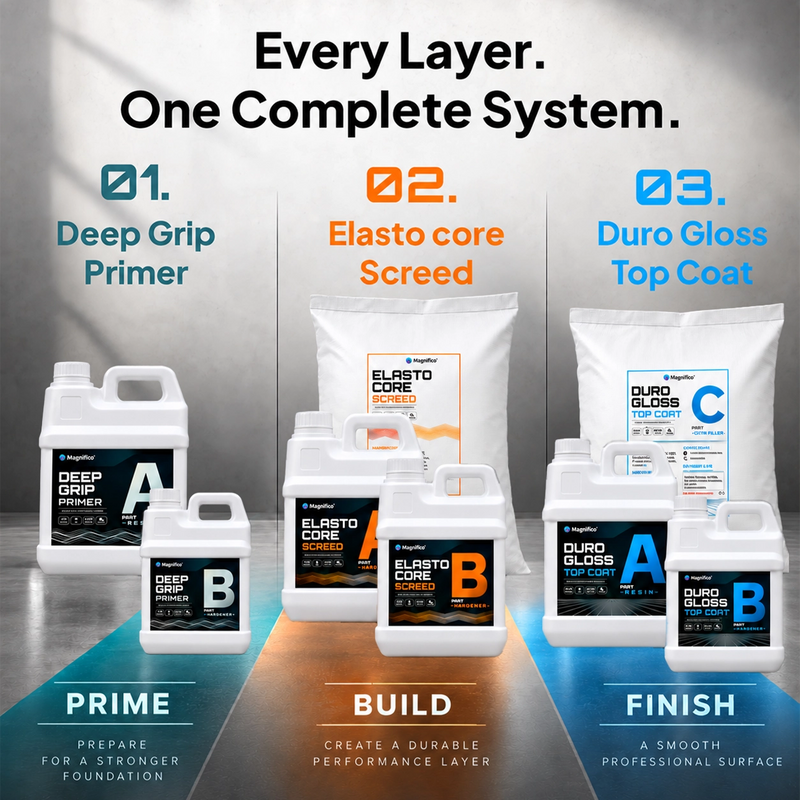

3-Layer Industrial Chemistry,
Engineered for Zero Delamination.
Why industry leaders choose Magnifico 3-in-1 Industrial Epoxy Flooring System (Custom Kit)
1-Year Performance Warranty
Manufactured under ISO 9001:2015. Guaranteed against peeling, delamination, and manufacturing defects.
| System Architecture | 3-Stage Monolithic System (Primer + Screed Mortar + Top Coat) |
| Mix Ratios | Primer 2:1 · Screed Mortar 1:1:6 · Top Coat 4:1 |
| Compressive Strength | >83 MPa (ASTM C579 Heavy Load-Bearing) |
| Concrete Bond Adhesion | >2.8 N/mm² (100% Concrete Failure Mode) |
| Working Pot Life | 45–60 minutes per coat |
| Cure Time | 12–14 hours (Walk-on) / 72 hours (5-Ton Forklift Traffic) |
| Recoat Window | 6–8 hours between consecutive coats |
| Kit Coverage | 10 m² (108 sq.ft) complete 3-layer system per kit unit |
| System Thickness | 1mm to 5mm customizable build |
| VOC / Cleanroom | 0% VOC — 100% Solvent-Free & Odorless (cGMP Compliant) |
| Chemical Shield | Resistant to Industrial Acids, Alkalis, Oils & Brake Fluids |
| Surface Finish | Seamless 92 GU High-Gloss Mirror Enamel |
2. Deep Grip Primer (Layer 1): Measure Part A and Part B in strict 2:1 ratio by weight. Mix for 2–3 minutes with spiral drill mixer. Pour and spread evenly with roller or squeegee at 5–8 m²/kg to saturate pores and block outgassing (6–8h cure).
3. Heavy-Duty Screed Mortar (Layer 2): Pre-mix Part A & Part B (1:1 ratio) for 2 minutes, then fold in graded silica quartz aggregate (1:1:6 mortar matrix) for 3–5 minutes. Spread with pin rake to specified mm thickness (1mm–5mm), compact with steel float, and cross-roll with spiked roller (12h cure).
4. Dura Gloss Top Coat (Layer 3): Mix 4:1 ratio (or 2:1:2.45 with Part C micronized filler) at 300–400 RPM for 3 minutes. Pour across floor and guide with notched squeegee, then de-aerate with spiked roller within 20 minutes. Self-levels to a monolithic 92 GU mirror gloss (12–14h walk-on, 72h full heavy forklift traffic).
• Layer 2 (Shock Screed): Heavy-Duty Screed Mortar (Part A Resin + Part B Hardener + Graded Quartz Matrix) — 18.0 Kg
• Layer 3 (Top Coat): Dura Gloss Self-Leveling Top Coat (Part A High-Gloss Base + Part B Hardener + Part C Micronized Filler) — 14.5 Kg
• Comprehensive Turnkey Industrial Flooring SOP Application Manual
• Pan-India Surface Heavy-Logistics Pallet Freight Packaging
Free heavy-cargo logistics: Pan-India surface express dispatch on palletized orders before 2 PM. Commercial freight transit within 4–7 business days.
Zero-transit-damage assurance: Packed in UN-certified heavy-gauge containers for 100% leak-proof delivery.
Which thickness (1mm to 5mm) should I select for my facility?
1mm: Dustproof sealer for light retail/foot traffic.
2mm: Light commercial workshops, packaging bays, and cleanrooms.
3mm: Standard warehouses with regular pallet truck transit.
4mm–5mm: High-intensity heavy engineering plants, continuous 5-ton forklift traffic, and severe mechanical impact zones.
What are the 3 stages in this kit and how do they work together?
Stage 1 is Deep Grip Primer (2:1 ratio) to seal concrete pores and stop pinholes.
Stage 2 is Heavy-Duty Screed Mortar (1:1:6 with graded aggregate) to level depressions and absorb heavy impact.
Stage 3 is Dura Gloss Top Coat (4:1 ratio) for a monolithic, chemical-resistant 92 GU mirror finish.
Can this kit be applied over old, uneven, or pitted concrete?
Yes. The Deep Grip Primer anchors into CSP 2–3 profiled concrete, while the Heavy-Duty Screed Mortar fills deep spalls, cracks, and uneven depressions in a single pass to create a laser-flat structural slab before topcoating.
How long before we can resume forklift and vehicle operations?
Pedestrian walk-on is safe within 12–14 hours at 30°C. Heavy equipment, 5-ton forklifts, and commercial pallet trucks can safely resume full operations after 72 hours. Full chemical washdown cure is reached in 7 days.
Is this system certified safe for pharmaceutical cleanrooms and food plants?
Yes. It cures to a seamless, monolithic, zero-pore surface fully compliant with cGMP hygiene norms. It has 0% VOC (100% solvent-free and odorless during application) and is impervious to oils, battery acids, brake fluids, and caustic sanitizing washdowns.
4 Reasons Industry Leaders Choose Magnifico
Direct-to-site rapid dispatch.
Turnkey warehouse & plant orders dispatch same day across every industrial corridor in India.
Competitors take 10-15 days with regional stockouts, delaying plant maintenance schedules.
0% VOC — 100% Solids System.
Zero fumes, zero solvents — safe for indoor pharmaceutical & food processing operations.
Diluted with cheap benzyl alcohol and solvents that cause shrinkage and toxic off-gassing.
10,000+ Industrial sites protected.
Trusted by automotive OEMs, pharma cleanrooms, heavy machinery plants & logistics hubs.
Generic craft brands lack ASTM C579 compressive testing and shatter under forklift wheel impact.
Engineered for extreme Indian shopfloors.
Withstands 18°C to 45°C ambient Indian plant heat with zero tackiness, curing rock hard.
Uncertified formulas blister, outgas, and delaminate during peak Indian humid monsoon seasons.
Who do you trust with your industrial floor?
Zero Delamination • 83+ MPa Strength • ISO 9001:2015
The Engineering Behind the Heavy-Duty Matrix.
Formulated specifically for Indian industrial plants, logistics hubs, and cGMP cleanrooms — engineered to resist extreme rolling wheel loads, thermal expansion, and aggressive chemicals.
Deep Substrate Anchor. 100% Solids.
Ultra-low viscosity liquid penetrates deep into microscopic concrete pores, chemically fusing into the cement matrix to eliminate outgassing and bubbling permanently.
83+ MPa Compressive Strength. ASTM C579.
High-density epoxy mortar layer withstands continuous rolling wheel loads of 5-ton forklifts, heavy tooling drops, and extreme manufacturing vibrations.
Seamless 92 GU Mirror Gloss. cGMP Compliant.
Monolithic self-leveling flow eliminates all grout lines, pores, and dirt traps, creating an ultra-hygienic, chemical-shield surface for factories and cleanrooms.
3-Step Complete Industrial Flooring System Application Ritual
Complete monolithic 3-layer industrial flooring system from concrete primer to high-gloss topcoat.

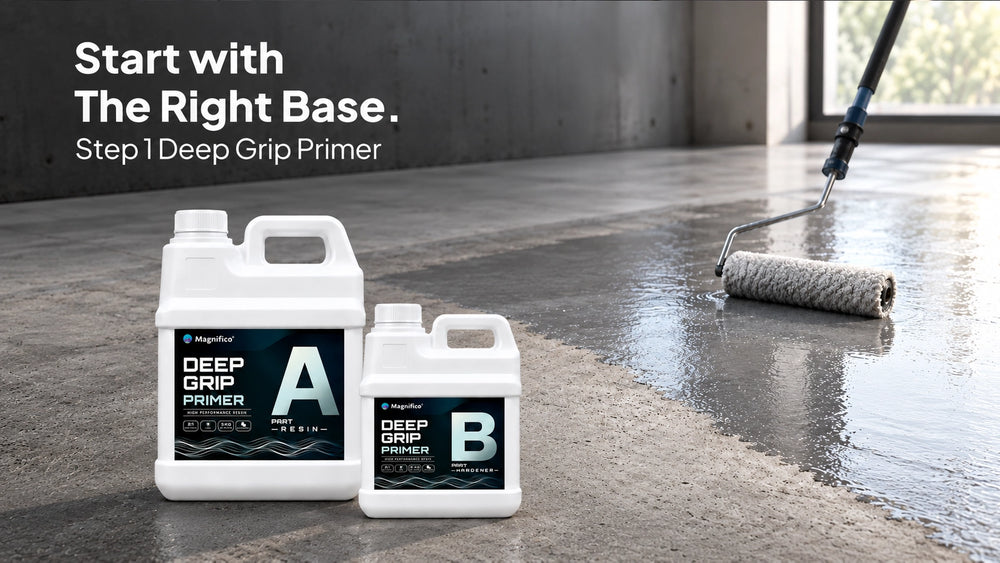

1. Subfloor Priming
Mechanically grind concrete to CSP 2–3 profile. Vacuum 100% dust. Apply Deep Grip Primer (2:1 ratio) to seal capillaries and prevent outgassing (6–8h cure).
2. Capillary Seal
Primer penetrates deep into concrete substrate pores, achieving 2.8 N/mm² mechanical bond strength exceeding concrete tensile failure limit.
3. Screed Mortar
Mix Heavy-Duty Screed with graded quartz aggregate. Spread with notched gauge rake to 1–5mm thickness and de-aerate with spiked roller (12h cure).
4. High-Gloss Topcoat
Apply self-leveling Dura Gloss topcoat with notched squeegee. Cures to a monolithic 92 GU mirror finish resistant to chemical spills and 5-ton forklifts.
Industrial Chemistry. Certified Strength.
Formulated specifically for extreme mechanical stress, continuous forklift traffic, and harsh chemical washdowns.
83+ MPa Strength
High compressive load resistance with ASTM C579 compliance — withstands continuous 5-ton forklift traffic with zero cracking.
Deep Capillary Anchor
Micro-penetration formula wicks deep into concrete capillary pores to lock out moisture and eliminate delamination permanently.
Class A3 Crack-Bridging
Elastomeric polymer matrix absorbs substrate micro-movements, vibration, and thermal shock across industrial subfloors.
Zero-Pore Chemical Shield
Dense monolithic cross-link resists brake fluids, battery acid, caustic washdowns, and meets stringent cGMP cleanroom standards.
Heavy-Duty Floors. Proven Performance.
See the before-and-after transformation Magnifico Industrial Flooring delivers across high-traffic manufacturing bays and cleanrooms.
Raw SubfloorRestored FinishHeavy Forklift Bay
"Survives 5-ton continuous forklift traffic daily with zero micro-cracking or edge chipping after 14 months."
Before PrimerAnchored BondPorous Dusting Concrete
"Penetrated deep into 20-year-old porous concrete and completely stopped dusting. High 4.5 MPa pull-off bond."
Before Screed
Troweled LevelManufacturing Cleanroom
"Passed all USFDA cleanroom sterile wash audits. Flawless 92 GU mirror gloss that wipes clean effortlessly."
Raw ConcreteMirror FinishAutomotive Service Bay
"Resists caustic chemical washdowns, dropped tooling, and hydraulic fluids with zero surface etching."
Why Plant Heads & Industrial Applicators Choose Magnifico Flooring Kit
★
Sunil Kapoor
Turnkey Industrial Applicator, Ahmedabad
"The complete 3-layer system took away all guesswork. Primer, screed mortar, and topcoat bonded into a monolithic slab across 35,000 sq.ft."
★
Naveen Chandran
Plant Operations Head, Pune
"Our heavy stamping bay handles constant 5-ton forklift traffic and dropped steel dies. Zero cracks, chipping, or spalling after 18 months of punishment."
★
Dr. Radhika Sen
Pharma QC Director, Baddi
"Passed all cGMP cleanroom inspections with zero issues. Seamless mirror finish that resists harsh chemical washdowns and heavy disinfection cycles."
★
Deepak Rawat
Warehouse Project Engineer, Bhiwandi
"Levelled 6mm concrete spalls in our loading bays in a single pass. Rock-hard 83 MPa compressive strength that gives our logistics team 100% confidence."
★
Sunil Kapoor
Turnkey Industrial Applicator, Ahmedabad
"The complete 3-layer system took away all guesswork. Primer, screed mortar, and topcoat bonded into a monolithic slab across 35,000 sq.ft."
★
Naveen Chandran
Plant Operations Head, Pune
"Our heavy stamping bay handles constant 5-ton forklift traffic and dropped steel dies. Zero cracks, chipping, or spalling after 18 months of punishment."
★
Dr. Radhika Sen
Pharma QC Director, Baddi
"Passed all cGMP cleanroom inspections with zero issues. Seamless mirror finish that resists harsh chemical washdowns and heavy disinfection cycles."
★
Deepak Rawat
Warehouse Project Engineer, Bhiwandi
"Levelled 6mm concrete spalls in our loading bays in a single pass. Rock-hard 83 MPa compressive strength that gives our logistics team 100% confidence."
Everything You Need to Know
| System Architecture | 3-Stage Monolithic System (Primer + Screed Mortar + Top Coat) |
| Mix Ratios | Primer 2:1 · Screed Mortar 1:1:6 · Top Coat 4:1 |
| Compressive Strength | >83 MPa (ASTM C579 Heavy Load-Bearing) |
| Concrete Bond Adhesion | >2.8 N/mm² (100% Concrete Failure Mode) |
| Working Pot Life | 45–60 minutes per coat |
| Full Cure Time | 12–14 hours (Walk-on) / 72 hours (5-Ton Forklift Traffic) |
| Recoat Window | 6–8 hours between consecutive coats |
| Kit Coverage | 10 m² (108 sq.ft) complete 3-layer system per kit unit |
| System Thickness | 1mm to 5mm customizable build |
| VOC / Cleanroom | 0% VOC — 100% Solvent-Free & Odorless (cGMP Compliant) |
| Chemical Shield | Resistant to Industrial Acids, Alkalis, Oils & Brake Fluids |
| Surface Finish | Seamless 92 GU High-Gloss Mirror Enamel |
2. Deep Grip Primer (Layer 1): Measure Part A and Part B in strict 2:1 ratio by weight. Mix for 2–3 minutes with spiral drill mixer. Pour and spread evenly with roller or squeegee at 5–8 m²/kg to saturate pores and block outgassing (6–8h cure).
3. Heavy-Duty Screed Mortar (Layer 2): Pre-mix Part A & Part B (1:1 ratio) for 2 minutes, then fold in graded silica quartz aggregate (1:1:6 mortar matrix) for 3–5 minutes. Spread with pin rake to specified mm thickness (1mm–5mm), compact with steel float, and cross-roll with spiked roller (12h cure).
4. Dura Gloss Top Coat (Layer 3): Mix 4:1 ratio (or 2:1:2.45 with Part C micronized filler) at 300–400 RPM for 3 minutes. Pour across floor and guide with notched squeegee, then de-aerate with spiked roller within 20 minutes. Self-levels to a monolithic 92 GU mirror gloss (12–14h walk-on, 72h full heavy forklift traffic).
• Layer 2 (Shock Screed): Heavy-Duty Screed Mortar (Part A Resin + Part B Hardener + Graded Quartz Matrix) — 18.0 Kg
• Layer 3 (Top Coat): Dura Gloss Self-Leveling Top Coat (Part A High-Gloss Base + Part B Hardener + Part C Micronized Filler) — 14.5 Kg
• Comprehensive Turnkey Industrial Flooring SOP Application Manual
• Pan-India Surface Heavy-Logistics Pallet Freight Packaging
Free heavy-cargo surface logistics: Pan-India palletized freight dispatch on orders placed before 2 PM.
Commercial delivery: 4–7 business days pan-India with dedicated heavy vehicle tracking.
1-Year Performance Warranty: ISO 9001:2015 manufactured and guaranteed against peeling or delamination.
Damage-free transit assurance: Packed in UN-certified heavy-gauge containers.
Which thickness (1mm to 5mm) should I select for my facility?
1mm: Dustproof sealer for light retail/foot traffic.
2mm: Light commercial workshops, packaging bays, and cleanrooms.
3mm: Standard warehouses with regular pallet truck transit.
4mm–5mm: High-intensity heavy engineering plants, continuous 5-ton forklift traffic, and severe mechanical impact zones.
What are the 3 stages in this kit and how do they work together?
Stage 1 is Deep Grip Primer (2:1 ratio) to seal concrete pores and stop pinholes.
Stage 2 is Heavy-Duty Screed Mortar (1:1:6 with graded aggregate) to level depressions and absorb heavy impact.
Stage 3 is Dura Gloss Top Coat (4:1 ratio) for a monolithic, chemical-resistant 92 GU mirror finish.
Can this kit be applied over old, uneven, or pitted concrete?
Yes. The Deep Grip Primer anchors into CSP 2–3 profiled concrete, while the Heavy-Duty Screed Mortar fills deep spalls, cracks, and uneven depressions in a single pass to create a laser-flat structural slab before topcoating.
How long before we can resume forklift and vehicle operations?
Pedestrian walk-on is safe within 12–14 hours at 30°C. Heavy equipment, 5-ton forklifts, and commercial pallet trucks can safely resume full operations after 72 hours. Full chemical washdown cure is reached in 7 days.
Is this system certified safe for pharmaceutical cleanrooms and food plants?
Yes. It cures to a seamless, monolithic, zero-pore surface fully compliant with cGMP hygiene norms. It has 0% VOC (100% solvent-free and odorless during application) and is impervious to oils, battery acids, brake fluids, and caustic sanitizing washdowns.
Build with Certified Industrial Confidence
Every Magnifico Industrial Flooring batch is ASTM tested and backed by our complete performance warranty.
1-Year Industrial Warranty
Guaranteed against delamination, peeling, and chemical breakdown under recommended application parameters.
Same-Day Dispatch
All orders placed before 2 PM ship the same day — pan-India, every working day.
Free Damage Replacement
Item damaged in transit? We send a complete replacement immediately at zero cost to you.
Trusted by 10,000+ Industrial Sites
